EMIQUAL Pasta Extruder Machine 500 Kg hr Fully Automatic

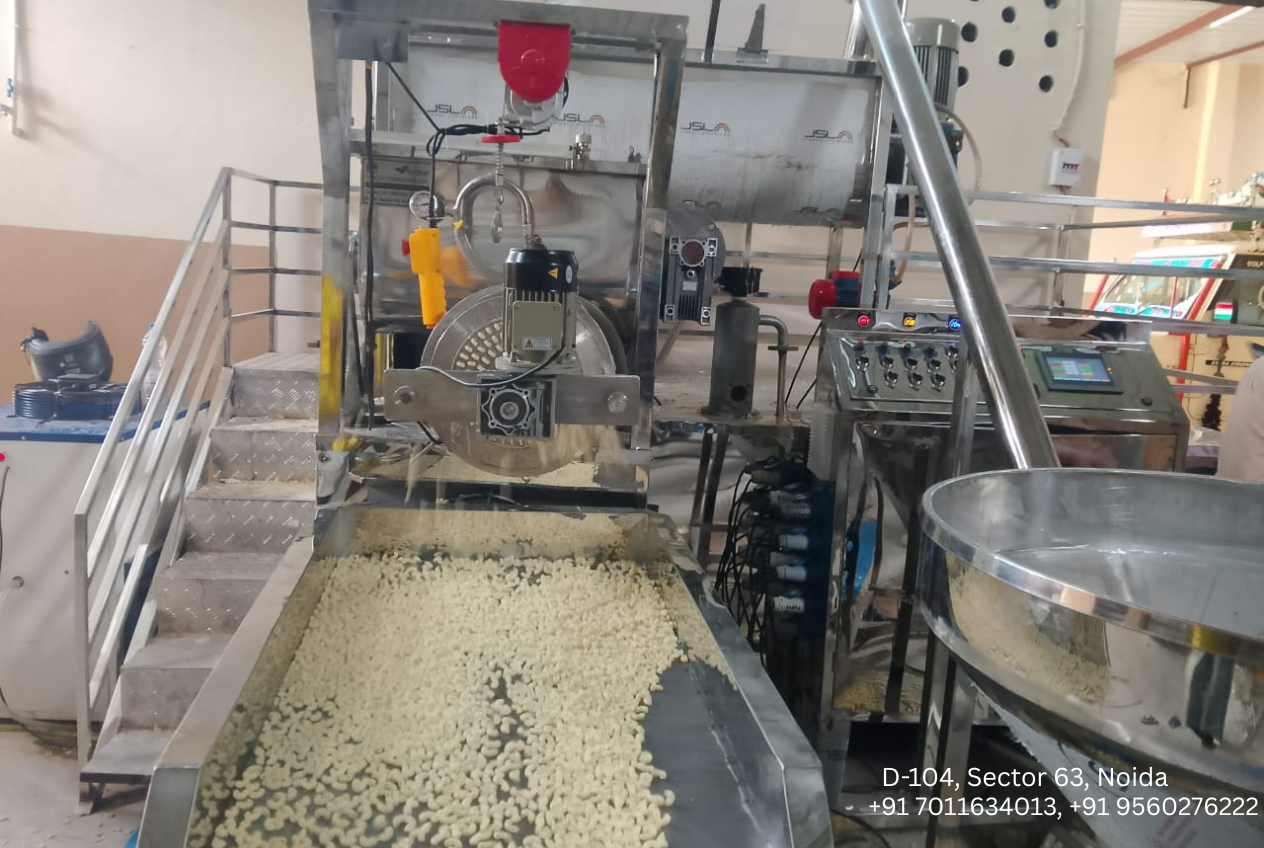

The EMIQUAL Pasta Extruder Machine is a fully automatic single body machine designed for continuous production of pasta and macaroni. The machine ensures uniform dough mixing, stable extrusion pressure, and consistent pasta shape using precision dies with Italian inserts.

It is suitable for industrial pasta production with high efficiency and reliable performance. This machine is ideal for medium and large scale pasta manufacturing units that require high output and continuous operation.

Technical Specifications

Parameter Specification

Application Use Pasta and Macaroni Production Line
Machine Type Fully Automatic Single Body Machine
Production Capacity 500 Kg per hour
Installed Power 35 KW
Power Supply 415 V 3 Phase 50 Hz
Machine Material Stainless Steel SS304
Brand EMIQUAL
Control System Schneider Control Panel
Drive System Delta Drive

Main Machine Components

1 Dry Material Hopper
2 Screw Conveyor
3 Extruder Unit
4 Chiller System
5 Oil Vacuum Pump with Moisture Filter
6 Main Screw with Barrel Single Piece Thread Milling
7 Vibrator
8 Moisture Mixer
9 Cutter System
10 Pasta Dies 3 Nos with Italian Inserts

Electrical Components

Component Brand

Motors Crompton
Electrical Control Panel Schneider
Drive or Inverter Delta

Optional Equipment

The following optional equipment can be added based on customer requirements.

Sifter
Chain Pulley System
PLC Control Panel Touch Screen Automation

Machine Features

Fully automatic operation
Heavy duty extrusion screw with precision thread milling
Stainless steel SS304 food grade construction
Stable pressure for uniform pasta shape
Compatible with multiple pasta dies and all dies are made of solid SS304
Energy efficient design
Easy cleaning and maintenance

Suitable Products

The machine can produce

Macaroni
Penne
Fusilli
Shell Pasta
Elbow Pasta
Spaghetti
Orzo
Rigate
Vermicelli

More than 100 pasta shapes can be produced by changing the dies.
